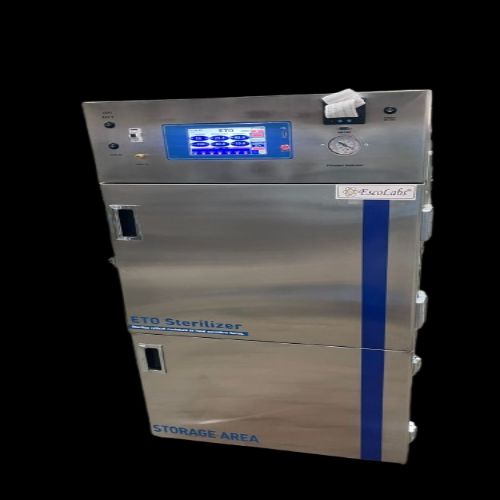

ETO STERILIZERS

Name: ETO STERILIZERS
Brand: SUNIL BROTHERS
Price: 250000.0 INR
Availability: InStock

Price 250000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ETO STERILIZERS Specification

Accuracy
1C Control Accuracy

Features
Automatic Operation, Data Logging, Printer Output, Leak Test, Safety Interlocks

Speed Range
Programmed Cycle Speeds

Heating Capacity
As per chamber size

Control Type
Microprocessor Based with HMI Touch Screen

Shape
Rectangular Vertical Standing

Power Supply
Electric

Temperature Resistance
Up to 60C

Display Type
Digital LCD/Touch HMI

Type
Other

Dimension (L*W*H)
Customizable (Available in multiple sizes based on capacity requirements)

Equipment Type
Automated Sterilizer

Equipment Materials
Stainless Steel

Power
Single or Three Phase (as per model)

Voltage
220V/380V

Material
High-grade Stainless Steel 304/316

Application
Sterilization of Medical Devices, Surgical Equipment, Pharmaceuticals, Food Products

Capacity (Ltr)
35 to 340 Liters (depending on model)

Cycle Documentation
Automatic Cycle Printout

Chamber Construction
Seamless SS Chamber with Mirror Polish

Chamber Volume
Available from 35L to 340L or more

Applicable Industry
Hospital, Laboratory, Medical Device Manufacturing

Alarm System
Audio Visual Alarm for all critical faults

Ethylene Oxide Cartridge
Compatible with Standard ETO Cartridges

Process Modes
Pre-set/Custom Sterilization Cycles

Door Type
Single/Double Door Available

Leak Test Facility
Automatic/Manual Included

Compliance
Meets cGMP/ISO/CE Requirements

Sterilization Agent
Ethylene Oxide (ETO) Gas

Vacuum System
Included, Oil Lubricated Pump

Data Logging
USB/Printer Output

Safety Features
Over-pressure Protection, Door Interlocks, Gas Exhaust System

ETO STERILIZERS Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Week

ETO STERILIZERS About

ETOSterilizer Machine Features -Eto Sterilizer -135ltr, 400mm x 400mm x 850mm , 135ltr

Automatic cycle progression is feasible in ETO Sterilizer through vacuum, exposure, sterilizing, and aerating phases

The control panel screen indicates specific phases in the sterilization process

Negative pressure of chamber prevents the gas from entering into operating area

Strict control of vacuum, temperature of chamber, exposure (aeration time) etc. for effective performance

A leak test function eliminates any leakage possibility in ETO sterilizer

Chamber and cabinet made of the finest quality stainless steel

Aeration system safeguards the operator from exposure to EO gas

The Automation Hardware: PLC (CE approved, CLASS 1 DIV2 Groups ABCD)

24 months warranty (starts from the date of installation and commissioning done from our end)

Hospital Sterilizer Machine is used to Sterilize

Plastic products that are used for Medical and Surgical Procedures

Devices that absorb electronic components

Temperature sensitive materials that get damaged at higher temperatures

Materials that are not compatible with other sterilization methods such as Steam sterilization

ETO Sterilizer Advantages

It effectively maintains low temperature, which is ideal for the sterilization process.

It is highly efficient for destroying microorganisms, including resistant spores.

It effectively sterilizes a wide range of metals, polymers, resins and natural materials.

It offers a large sterilizing volume capacity.

It is non corrosive to metal, plastic and rubber materials.

It is suitable for humidity sensitive devices too.

It is a versatile, effective and safe method for sterilizing a wide range of products.

Applications

Fully Automatic ETO Sterilizers are versatile and can be used in a variety of applications. Some of the common applications of Fully Automatic ETO Sterilizers include:

Medical Devices:Fully Automatic ETO Sterilizers are commonly used to sterilize a wide range of medical devices such as surgical instruments, endoscopes, and implantable devices.

Pharmaceuticals/Pharmacy Laboratories:Fully Automatic ETO Sterilizers are used to sterilize a wide range of pharmaceutical products such as injectable solutions, tablets, and capsules.

Food Industry:Fully Automatic ETO Sterilizers are used to sterilize food products such as spices, seasonings, and dried fruits.

Cosmetics and Personal Care Products:Fully Automatic ETO Sterilizers can be used to sterilize cosmetics, personal care products, and other consumer goods.

Laboratory Equipment:Fully Automatic ETO Sterilizers can be used to sterilize laboratory equipment such as petri dishes, test tubes, and other lab instruments.

Industrial Equipment:Fully Automatic ETO Sterilizers can also be used to sterilize industrial equipment such as filters, valves, and other components.

Microbiology Research and Development:Fully Automatic ETO Sterilizers can be used for sterilization of materials and samples in R&D centers, universities and research institutes.

Medical Colleges, Hospitals and clinics:Fully Automatic ETO Sterilizers can be used for sterilization of medical instruments and equipments in hospitals and clinics.

Precision Engineering for Safe Sterilization

Designed with a seamless SS chamber and mirror polish, these ETO Sterilizers use advanced microprocessor-based controls for exceptional performance and precision. The automated leak test, over-pressure protection, and interlocked doors make the process safe and reliable for users in hospitals, laboratories, and manufacturing facilities.

Automated Solutions for Diverse Applications

Our ETO Sterilizers accommodate single or double door configurations and customized chamber sizes. With customizable sterilization cycles and preset programs, the system meets the rigorous demands of medical, pharmaceutical, and food industries, all while delivering user-friendly operation via a digital LCD or HMI touch screen interface.

Comprehensive Compliance and Documentation

Built to meet international standards such as cGMP, ISO, and CE, these units provide robust data logging, automatic cycle printouts, and visual/audible alarms for all critical faults. Their compatibility with standard ETO cartridges and user-friendly documentation ensures regulatory readiness and accurate record-keeping.

FAQ's of ETO STERILIZERS:

Q: How does the ETO Sterilizer ensure safe and effective sterilization of equipment?

A: The ETO Sterilizer features a seamless stainless steel chamber, automated leak test, over-pressure protection, door interlocks, and an integrated gas exhaust system. These safety mechanisms, combined with precise temperature control up to 60C and accurate cycle programming, ensure each sterilization process is safe, thorough, and consistent.

Q: What types of industries commonly use these ETO Sterilizers?

A: Hospitals, laboratories, medical device manufacturers, pharmaceutical producers, and the food industry widely use ETO Sterilizers for the reliable decontamination of instruments, equipment, and products that require low-temperature sterilization and meticulous safety standards.

Q: When should a custom sterilization cycle be used instead of a pre-set one?

A: Custom cycles are ideal when sterilizing unique items or products that require specific exposure times, gas concentrations, or temperature profiles. Pre-set cycles are typically used for routine loads, but the equipment allows operators to tailor each run as needed for specialized applications.

Q: Where can these ETO Sterilizers be installed?

A: They can be installed in hospitals' central sterile supply departments, laboratory cleanrooms, medical device production lines, and pharmaceutical processing areas. The sterilizer's customizable dimensions and vertical standing design enable flexible integration into a variety of workspaces.

Q: What are the benefits of the automatic data logging and printout features?

A: Automatic data logging and printouts provide precise record-keeping for every sterilization cycle, supporting regulatory compliance, quality assurance, and traceability. The system offers USB and printer output, allowing for easy retrieval and storage of process data.

Q: How does the leak test process function in the ETO Sterilizer?

A: The integrated leak test, available in automatic or manual modes, checks the chamber and vacuum system to ensure airtight conditions before every cycle. This safeguards against ETO gas leaks, protecting personnel and maintaining sterilization effectiveness.

Q: What makes these sterilizers compliant with cGMP, ISO, and CE standards?

A: The sterilizers are engineered with features like high-grade SS304/316 materials, advanced safety interlocks, robust alarm systems, process documentation, and precise control technology, ensuring all operational and safety requirements of global regulatory bodies are met.
